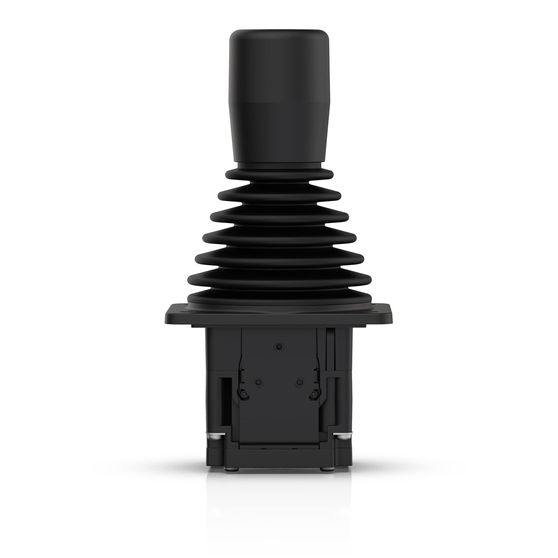

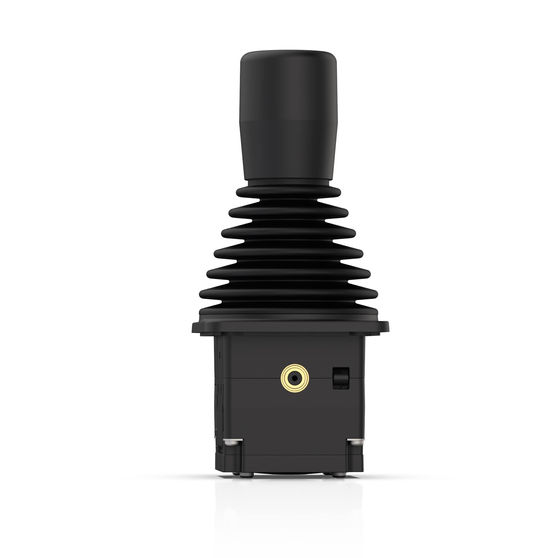

ST-MH-MU-u-II-xy-GS40
Affordable, redundant dual-axis joystick with shallow installation depth
This extremely compact, easy-to-use finger joystick, with its ergonomic design, is suitable for operations and navigation on crane systems, in medical and marine technology, the railway industry, and for radio control. Thanks to its magnetic, non-contact measuring system, this joystick is ideal for use in harsh environments and demanding conditions. The handle offers excellent tactile feedback and a secure feel. The bellows protect the mechanism from corrosion and dirt.
Redundant magnetic measuring system
Definable, mechanically perceptible pressure point for detecting actual movement
Ratiometric voltage output
Technical
Characteristics
Series class:
COMPACT series
Direction of actuation:
x/y axis
Deflection angle:
±17.5° (x/y)
Signal output:
0,5–4,5 V
Add a Title
Add a Title
Product assignment
Series class
COMPACT series
Add a Title
Type
joystick
Add a Title
Add a Title
Add a Title
Function & Operation
Direction of actuation
x/y axis
Add a Title
Actuation
Spring return in the middle position
Add a Title
Deflection angle
±17.5° (x/y)
Add a Title
Lever return force
2.8 N (center position) / 4 N (full deflection)
Add a Title
Version
redundant
Add a Title
Add a Title
Add a Title
Mechanics & housing
Design
GS40
Add a Title
IP rating
IP65
Add a Title
Housing material
Plastic
Add a Title
Housing size
40 x 40 mm
Add a Title
Installation depth
39.5 mm
Add a Title
Weight
160 g
Add a Title
Add a Title
Add a Title
Electrical characteristics
Signal output
0,5–4,5 V
Add a Title
Connection
Flat ribbon cable with JST ZHR-8 connector plug
Add a Title
Signal
Fixed calibration
Add a Title
Supply voltage
5 V DC
Add a Title
Add a Title
Add a Title
Environmental conditions & durability
Temperature range
-30 °C to +60 °C
Add a Title
Temperature coefficient
0,15 % / 10 K
Add a Title
Service life
5 million cycles
Add a Title
Shock
5 g, 30 ms
Add a Title
Vibration
5–150 Hz, 0.8 g
Add a Title
EMC
DIN EN 61000-6-2/-4, ISO 13766-1/-2
Add a Title
MASTER ARTICLE NO.
3585Z
Add a Title
DB FS-G-II-i EN
Datenblatt | EN
TEST
TEST
Add a Title
Add a Title
recommended
Application areas
Add a Title
Add a Title
Add a Title
Cable pull mechanisms
Sensor integration & signal technology
Add a Title
Add a Title
Add a Title
Sensor mount with coupling
Add a Title
Add a Title
Add a Title
Add a Title
Details Anzeigen
Add a Title
Add a Title
Add a Title
Cable pull mechanisms
Sensor integration & signal technology
The options listed here represent only a selection of the many configuration possibilities. FSG has been developing customized sensor solutions for a wide variety of applications for decades. If you have a specific requirement or cannot find the desired option, please contact us – together we will develop the optimal solution for your application.
