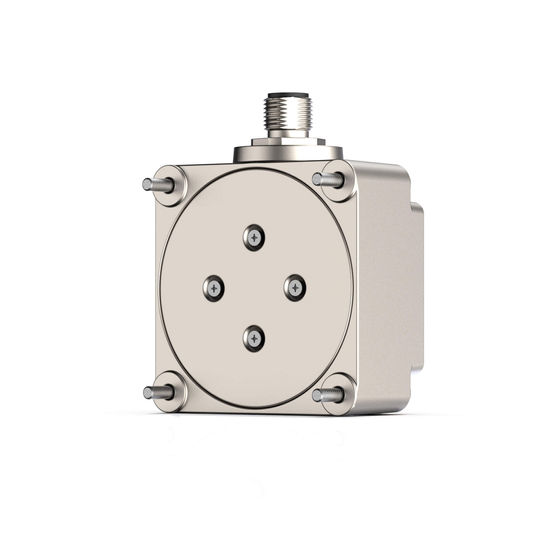

PE-MEMS-X-CAN-G-GS70
Der Neigungssensor der Serie PE-MEMS-X-CAN-G-GS70 ist mit einem hochgenauen MEMS-Beschleunigungssensor ausgestattet und verfügt über eine digitale CAN-Bus-Schnittstelle.
Neigungssensor mit zusätzlichem Gyrosensor zur Schockkompensation
Redundantes Messsystem für sicherheitsrelevante Anwendungen
Robustes Alugehäuse in Schutzart bis IP68 test
Technical
Characteristics
Serie:
Premium
Messachsen:
Einachssensor
Signalausgang:
CAN-Bus
Neigungswinkel max.:
0°–360°
Add a Title
Add a Title
Allgemein
Serie
Premium
Add a Title
Add a Title
Add a Title
Messsystem & Funktion
Messsystem
MEMS und Gyro
Add a Title
Messachsen
Einachssensor
Add a Title
Messwerterfassung
Beschleunigungs- und Gyrosensor
Add a Title
Neigungswinkel max.
0°–360°
Add a Title
Winkelgenauigkeit
Beschleunigungssensor: ±0,1°, Gyrosensor: ±0,5°
Add a Title
Auflösung
max 0,01° / Digit
Add a Title
Temperaturkoeffizient
zwischen 0,03° / 10 K und 0,1° / 10 K
Add a Title
Add a Title
Add a Title
Mechanik & Gehäuse
Gehäuse
70 x 70 mm
Add a Title
Gehäusematerial
Aluminium
Add a Title
Gehäusehöhe
30 mm
Add a Title
Gehäusebauform
GS70
Add a Title
Gewicht
300 g
Add a Title
Add a Title
Add a Title
Elektrische Eigenschaften
Ausführung
Beschleunigung / Gyro
Add a Title
Signalausgang
CAN-Bus
Add a Title
Speisung
9–42 V DC
Add a Title
Bürde / Protokoll
CANopen / CANopen-safety
Add a Title
Stromaufnahme
<120 mA
Add a Title
Anschlussart
Stecker / Kabel
Add a Title
Add a Title
Add a Title
Umwelt & Robustheit
Schutzart
bis zu IP68
Add a Title
Temperaturbereich
-30 °C bis +70 °C
Add a Title
Schock
50 g, 6 ms
Add a Title
Vibration
10–1000 Hz, 4 g
Add a Title
EMV
ISO 13766-1/-2, EN 61000-6-2/-13
Add a Title
Add a Title
Add a Title
Funktionale Sicherheit & Zulassungen
Funktionale Sicherheit
SIL / PL
Add a Title
Anschlusstabelle / PIN-Belegung
