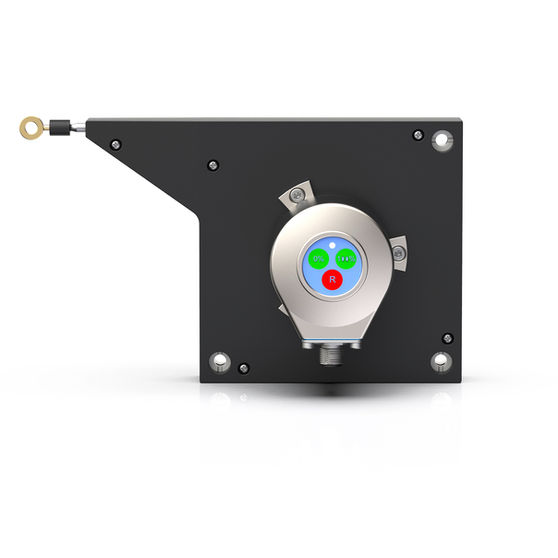

SL005000-MH64-1023-MU-i-GS130

Lightweight draw-wire sensor of the Basic series with analog signal output

The SL005000-MH64-1023-MU-i-GS130 draw-wire sensor from the Basic series combines a GS130 form factor with a measuring length of up to 5 m and analog 4–20 mA signal output. The lightweight Noryl housing, linearity of ±0.01%, and coupling-free encoder mounting make this design an economical solution for precise displacement measurements within the respective measuring range.


  • Low-cost version

  • Lightweight and flat design

  • Plastic-coated measuring cables

Technical

Characteristics

Measuring length:

5 meters

Design:

130 x 130 mm

Signal output:

4–20 mA

Series Class:

Basic

Inquiries
  • Add a Title

    Add a Title

    Product classification

    Series Class

    Basic

    Add a Title

    Add a Title

    Add a Title

    Measuring range & mechanics

    Design

    130 x 130 mm

    Add a Title

    Housing material

    Plastic, Noryl

    Add a Title

    Drum circumference

    385 mm

    Add a Title

    Measuring length

    5 meters

    Add a Title

    Measuring cable

    0.55 mm

    Add a Title

    Measuring cable material

    1.4401

    Add a Title

    Linearity

    ±0,01 %

    Add a Title

    Repeatability

    0,01 %

    Add a Title

    Hysteresis

    0,05 %

    Add a Title

    Draw-wire speed

    3 m/s

    Add a Title

    Acceleration

    4 m/s²

    Add a Title

    Spring return force

    4,5–7 N

    Add a Title

    Service life

    up to 1 million load cycles

    Add a Title

    Mechanism temperature range

    -30°C to +70°C

    Add a Title

    Housing IP rating

    IP50

    Add a Title

    Total weight

    800 g

    Add a Title

    Weight with rotary encoder

    1.1 kg

    Add a Title

    Dimension A

    130 mm

    Add a Title

    Dimension B

    186 mm

    Add a Title

    Add a Title

    Add a Title

    Rotary encoders

    Rotary encoders

    MH64-1023-MU-i

    Add a Title

    Encoder housing length

    approx. 34 mm

    Add a Title

    Encoder weight

    300 g

    Add a Title

    Encoder housing diameter

    60 mm

    Add a Title

    Encoder housing IP rating

    IP65

    Add a Title

    Rotation angle

    max. 360°

    Add a Title

    Encoder connection type

    Plug / cable

    Add a Title

    Encoder mounting

    3x M4 or clamp fastening

    Add a Title

    Encoder measuring system

    magnetic, Hall sensor

    Add a Title

    Typical accuracy

    ±0,1 %

    Add a Title

    Signal output resolution

    Signal output resolution

    Add a Title

    Encoder shock

    50 g, 6 ms

    Add a Title

    Encoder vibration

    4 g sine wave, 5–100 Hz

    Add a Title

    Add a Title

    Add a Title

    Electrical characteristics

    Encoder interface

    analog

    Add a Title

    Signal output

    4–20 mA

    Add a Title

    Encoder temperature range

    -30 °C to +70 °C

    Add a Title

    Temperature coefficient

    0,1° / 10 K

    Add a Title

    Supply voltage

    18–33 V DC

    Add a Title

    Protocol

    max. 600 Ω

    Add a Title

    MASTER ARTICLE NO.

    5945Z01

    Add a Title

  • DB FS-G-II-i EN

    Datenblatt | EN

    Download
