MEASURING LENGTH
50 meters
HOUSING
190 x 190 mm
OPTIONAL
DRAW WIRE SENSORS

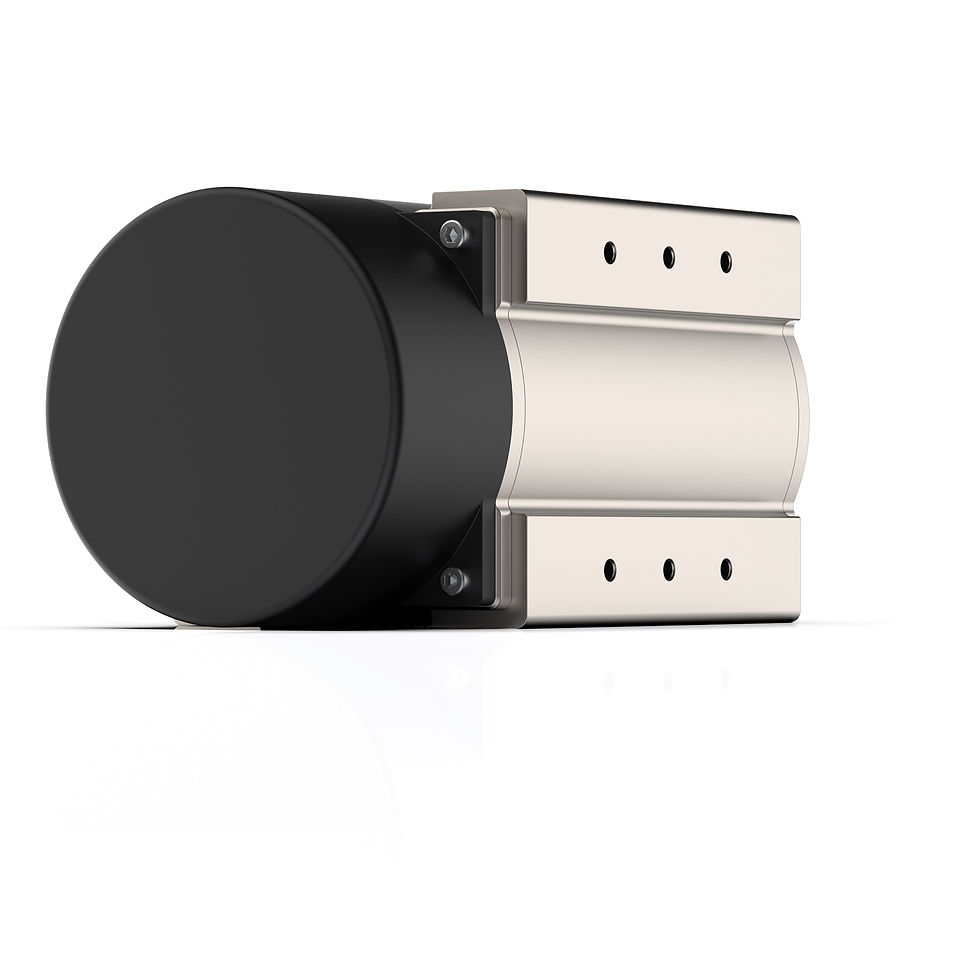

SL3050-MH-II-MU-i-GS190-G
Robust Premium Series Draw Wire Sensor with a measuring length of up to 30 m and analog signal output
RECOMMENDED FOR THE FOLLOWING
AREAS OF APPLICATION
PREMIUM
10–50 m
|
Measuring range
_edited_edited.png)
DRAW WIRE SENSORS
SL3050-MH-II-MU-i-GS190-G
Side view left
Rear view
Front view
Measurements
The design depends on the measuring length and is defined by dimensions A and B.
Weight
14.5 kg
Measure – A
Dimension – B
Drum circumference
491.5 mm
292 mm
195 mm
Housing dimensions
190 x 190 mm
Product view
Mechanical data
50 meters
Measuring length
Aluminum, anodized
Housing material
Weight
IP 64
Enclosure protection class
Measuring part material
491.5 mm
Drum circumference
18–37 N
Spring return force
36.5 mm
Maximum rotation angle.
8 m/s
Trigger speed
1.35 mm
Measuring part
36.5 mm
Maximum revolutions.
10 m/s²
acceleration
0.01%
reproducibility
0.05%
Hysteresis
'-30°C to +70°C
Temperature range
up to 500,000 load cycles
life
±0.10%
Linearity
5931Z01
Article master number
Details about the encoder
Permit
agenda
09:30
03 Jul
